PTFE Coated Conveyor Belts

Brand: WELLFLON
Materials: PTFE (Teflon), Fiberglass Fabric,Kevlar
Yarn Type: Filament Yarn/Texturized Yarn
Width Range: 1000~4000mm
Thickness: Custom Thickness
Features: Non-stick, High-Temp Resistant
Temp. Resistance: -70°C to +280°C

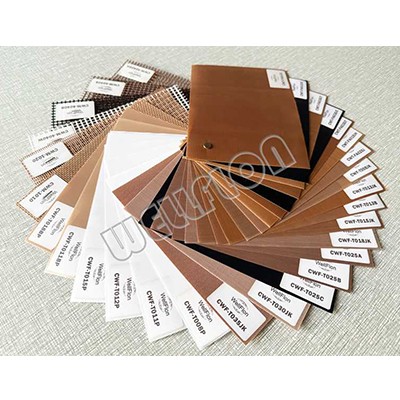

Color: Brow/Black/White /Custom Color

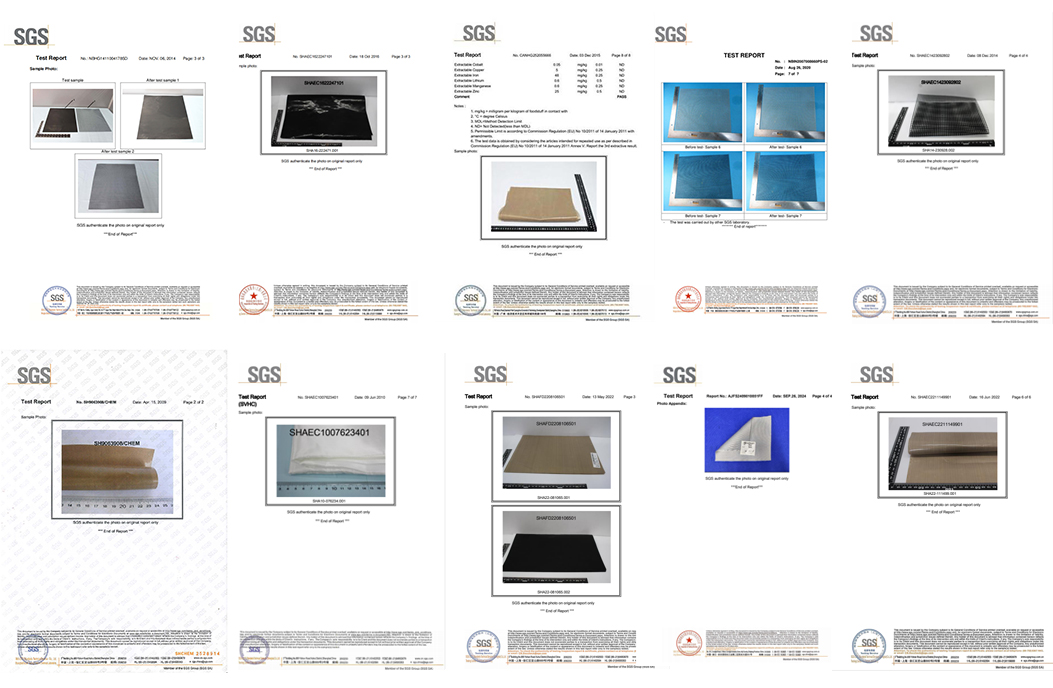

Certification: FDA/LFGB/SGS/RoHS/UL

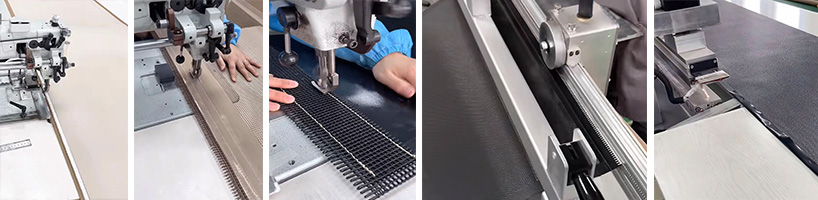

WellFlon® PTFE Coated Conveyor Belts are made of high-quality high-strength imported glass fiber or Kevlar as the base material, and coated with PTFE (Teflon®) emulsion. Then, Sewn reinforced edge and connecting joints as the custom size to become a high temperature Teflon conveyor belt. PTFE Coated Conveyor Belt is really suitable for drying machine, printing machine, food packing machine. Metal lacing of steel joint conveyor belt is locked into reinforced belt ends.It is extremely strong and flexible mechanical seam. Excellent release, dimensional stability and high anti-tensile strength, high operating temperature, offer excellent abrasion and medicament property resistance.

WellFlon develops PTFE belting fabric for applications that require superior release characteristics, dimensional stability and high anti-tensile strength, high operating temperature, and the dynamic strength to stand up to the most rigorous operating conditions. The unique behavior of the materials results in a product that is more practical and cost-effective than conventional belting fabric.

Main Characteristics of PTFE Coated Conveyor Belts:

1. Temperature resistance from -70C to +260°C.
2. Non-stick surface, easy to clean.
3. Chemical resistance, Be resistant to various organic solvent.
4. Good stability in size, high strength, good mechanical performance.
5. Bending fatigue resistance, and can be used on smaller wheel.
6. Non-toxic, and can resist almost all pharmaceutical products.
7. Fire Proof.
8. Air permeability of the conveyor belt can reduce the heat-consuming, and improve the drying efficiency.

Main Application of PTFE Coated Conveyor Belts:

(Any industry which need conveyor belts in heat air flow or heat processing)

1.Textile and dyeing: drying for textile printing, dyeing, shrinking, non-woven fabric, and in industry oven.
2.The loose-dryer, offset, UV curing machine, paper oil drying, UV drying, plastic printing drying.
3.High-frequency wave drying, microwave drying, food refrigeration and defrost, baking, packaging heat shrinking.

Main Specifications of PTFE Coated Conveyor Belts:

Item	Color	Thickness	Max Width	Weight	Tensile Strength	Temperature
CWF-T0158	Brown/Black/White	0.08mm	1250mm	158±5g/m2	500/480N/50mm	-70~280 ℃
CWF-T0160	Brown/Black/White	0.08mm	1250mm	160±5 g/m 2	620/460N/50mm	-70~280 ℃
CWF-T0180	Brown/Black/White	0.08mm	1250mm	180±5 g/m 2	930/720N/50mm	-70~280 ℃
CWF-T0260	Brown/Black/White	0.13mm	1250mm	260±5 g/m 2	100/1000N/50mm	-70~280 ℃
CWF-T0275	Brown/Black/White	0.13mm	1250mm	275±5 g/m 2	1000/960N/50mm	-70~280 ℃
CWF-T0290	Brown/Black/White	0.13mm	1250mm	290±5 g/m 2	910/880N/50mm	-70~280 ℃
CWF-T0395	Brown/Black/White	0.18mm	1250mm	395±5g/m 2	1600/1600N/50mm	-70~280 ℃
CWF-T0415	Brown/Black/White	0.18mm	1250mm	415±5 g/m 2	1500/1500N/50mm	-70~280 ℃
CWF-T0490	Brown/Black/White	0.25mm	2800mm	490±5 g/m 2	2100/1800N/50mm	-70~280 ℃
CWF-T0510	Brown/Black/White	0.25mm	2800mm	510±5 g/m 2	2800/2700N/50mm	-70~280 ℃
CWF-T0660	Brown/Black/White	0.35mm	3200mm	660±5 g/m 2	2700/2600N/50mm	-70~280 ℃
CWF-T0680	Brown/Black/White	0.35mm	3200mm	680±5 g/m 2	2100/2200N/50mm	-70~280 ℃
CWF-T0780	Brown/Black/White	0.40mm	3500mm	780±5 g/m 2	2900/3100N/50mm	-70~280 ℃
CWF-T0820	Brown/Black/White	0.40mm	3500mm	820±5 g/m 2	3000/2900N/50mm	-70~280 ℃
CWF-T1150	Brown/Black/White	0.65mm	4000mm	1150±5 g/m 2	4200/4000N/50mm	-70~280 ℃
CWF-T1550	Brown/Black/White	0.90mm	4000mm	1550±5 g/m 2	6300/5800N/50mm	-70~280 ℃
CWF-T1650	Brown/Black/White	0.90mm	4000mm	1650±5 g/m 2	6150/5300N/50mm	-70~280 ℃
