PTFE Skived Film Adhesive Tapes

Brand: WellFlon
Materials: PTFE (Teflon), Fiberglass, Silicone
Adhesive Type: Organic Silicone Adhesive
Width Range: 1250mm
Thickness: Custom Thickness
Features: Non-stick, High-Temp Resistant
Temp. Resistance: -70°C to +260°C
Color: Brow/Black/White /Custom Color

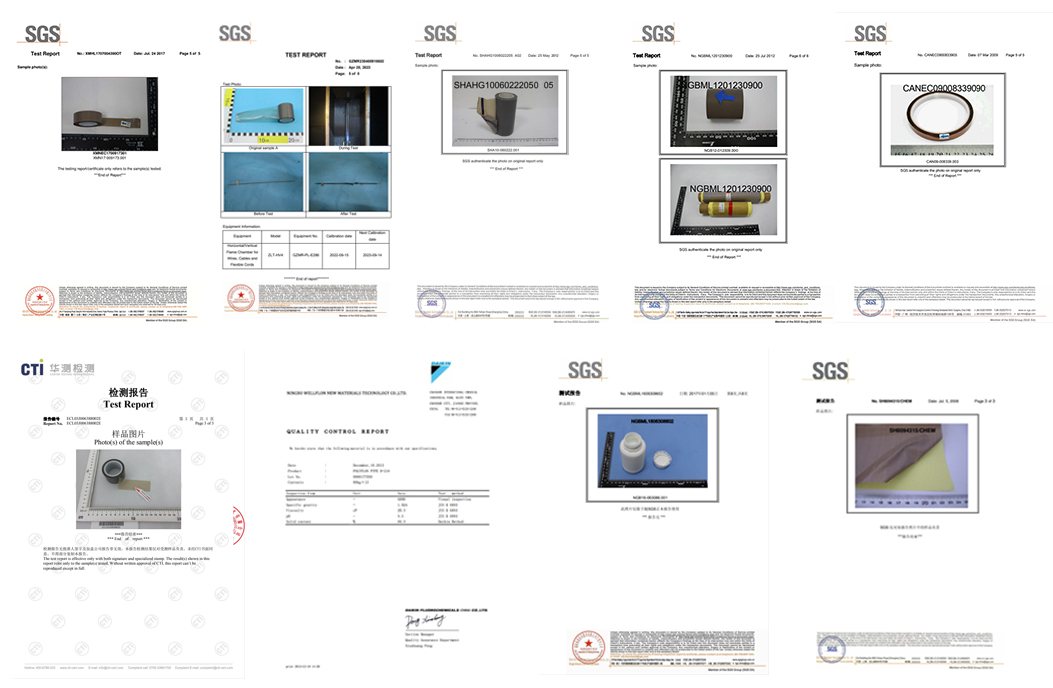

Certification: FDA/LFGB/SGS/RoHS/UL

WellFlon® PTFE Skived Film Adhesive Tapes are made of skived PTFE film with a high temperature pressure-sensitive silicone or acrylic adhesive backing for easy positioning and adhesion.

WellFlon selects the high purify of PTFE pulverous machining mould press materials, shall press materials carry through sinter shaped after skiving, ball of wax accomplish on high-grade purification room. We adopt special fine and high precision of technology to skive and get the high quality of PTFE film, treatment after a special surface and then coating adhesive as the base of silicone PSA tape.

Front: PTFE Film
Back: Silicon Adhesive
It has two type: one has lining, the other hasn’t.

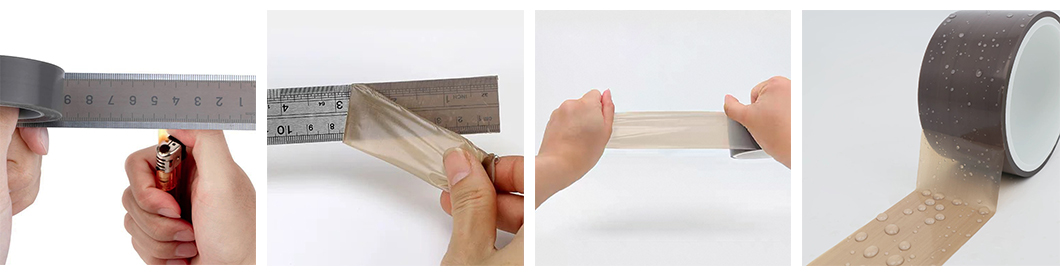

Main Characteristics of PTFE Skived Film Adhesive Tapes:
1.The using temperature is between -60 ºC -260 ºC. weather-resistant & anti-aging.
2.Non-Adhesive: The surface is smooth, not easy for adhesion. Easy to clean the surface oil, stain, or other attachments.
3.Resistant to strong acid, alkali and various kinds of organic solvent and chemical etching.
4.Non-toxic, drug resistance. Almost resistant to all pharmaceutical items.
5.Good insulation, prevent ultraviolet, anti-static.
6.Fire retardant.
7.Easy to use, long service life.

Main Application of PTFE Skived Film Adhesive Tapes:
1.All kinds of high temperature of roller coated, heating plate, off- membrane, thick liquid yarn machine’ off-membrane drum, thermoplastic demoulding and other off-membrane industries.
2.Food, dairy products, pharmaceuticals of plastic film bags hot sealing pressure sticky.
3.The sliding channel, hopper, aviation mould etc liner paste.
4.Suitable for other places which need anti-metal and keeping a smooth part.
5.Corrosion resistance and high temperature resistant surface treatment
6.As insulating liner, insulation parts of the insulation encapsulation etc.
7.Used for various fine pressure roller coated machine, the surface of laminating content.

Main Specifications of PTFE Skived Film Adhesive Tapes:

Item	Thickness	Elongation Rate	Surface Resistance	Adhesive Strength To Steel (N/4cm)	Tensile Strength (N/100mm)	Temperature
CWT-PA006	0.06mm	100%	10¹⁶Ω	≥ 10	300	-70~260 ℃
CWT-PA008	0.08mm	100%	10¹⁶Ω	≥ 12	320	-70~260 ℃
CWT-PA011	0.11mm	100%	10¹⁶Ω	≥ 15	350	-70~260 ℃
CWT-PA013	0.13mm	100%	10¹⁶Ω	≥ 18	400	-70~260 ℃
CWT-PA018	0.18mm	100%	10¹⁶Ω	≥ 20	650	-70~260 ℃
CWT-PA025	0.25mm	100%	10¹⁶Ω	≥ 25	950	-70~260 ℃
CWT-PA030	0.30mm	100%	10¹⁶Ω	≥ 28	1050	-70~260 ℃
