PTFE Clear Flange Guards

Brand: WellFlon
Materials: PTFE (Teflon), Fiberglass Fabric
Yarn Type: Filament Yarn/Texturized Yarn
Width Range: 1000~4000mm
Thickness: Custom Thickness
Features: Non-stick, High-Temp Resistant
Temp. Resistance: -70°C to +280°C
Color: Brow/Black/White /Custom Color
Certification: FDA/LFGB/SGS/RoHS/UL

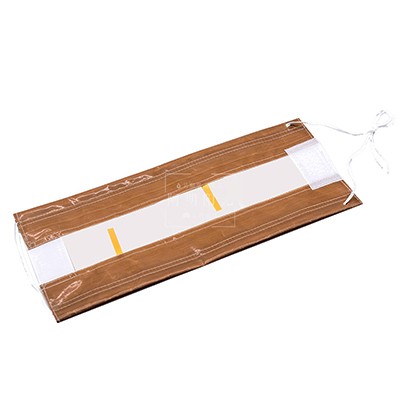

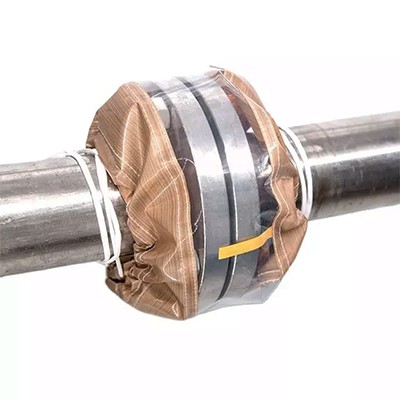

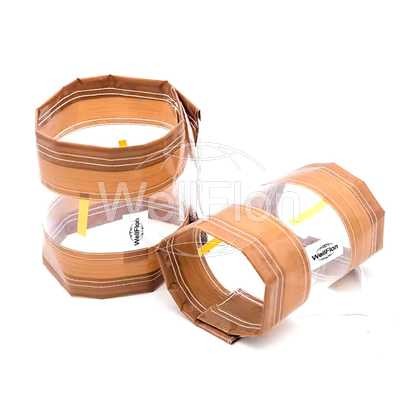

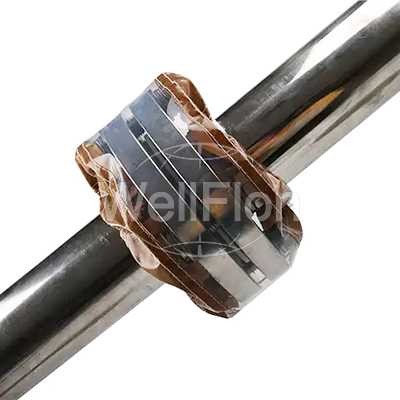

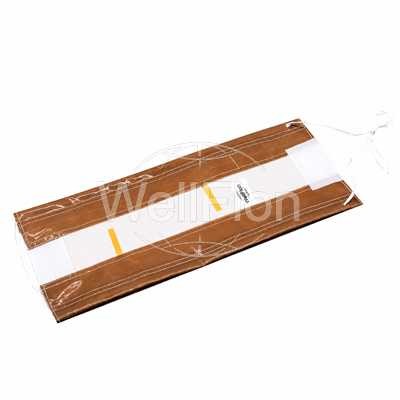

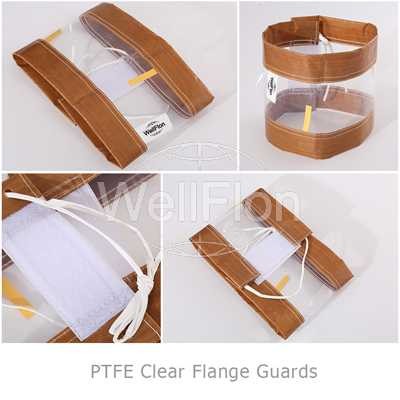

WellFlon® PTFE Flange Guards are manufactured from PTFE (Teflon®) coated fibreglass fabric, with wide central band of clear (ECTFE). Permits visual inspection of flange. Stitching is PTFE (Teflon®) and Kevlar. The easy to fit lock tight fastening system comprises a Velcro strip, coupled with a braided 100% PTFE (Teflon®)‐coated draw string. When tightened the fabric is drawn over the flange bolts to the pipe wall thus eliminating a lateral spray out.

The design enables leaks to be released without danger, avoiding pressure‐build up within the shield. The PTFE (Teflon®)-Clear shield design allows easy installation and removal with no special tools. It can be re-used, even in the event of a leak, thus providing a long term solution.

Main Characteristics and Application of PTFE Flange Guards:

Materials :    Teflon coated fibre glass + ECTFE
Max. Temperature :    150 Deg C
Max. Pressure : 350 PSI
Flange Ratings : ANSI 150 – 300lb / DIN PN6 – PN25 / BS Table A – T
Dimension :   ¼” – 24” +
Joint/Connection Type : Flanges, couplings, Elbows, tees and more
Leak Detection : Not included
Typical Applications : Oil (fuel,lube,seal), Steam, Acids, Caustics + Corrosives, Flanges, Elbows, Tees, Valves
