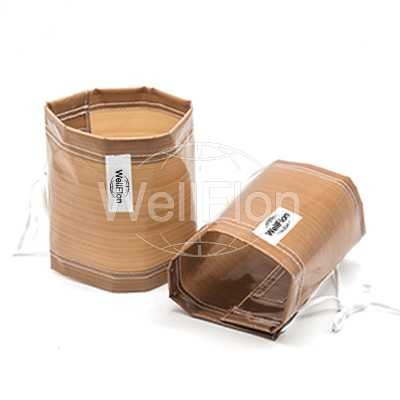

PTFE Flange Spray Shields

Brand: WellFlon
Materials: PTFE (Teflon), Fiberglass Fabric
Yarn Type: Filament Yarn/Texturized Yarn
Width Range: 1000~4000mm
Thickness: Custom Thickness
Features: Non-stick, High-Temp Resistant
Temp. Resistance: -70°C to +280°C
Color: Brow/Black/White /Custom Color
Certification: FDA/LFGB/SGS/RoHS/UL

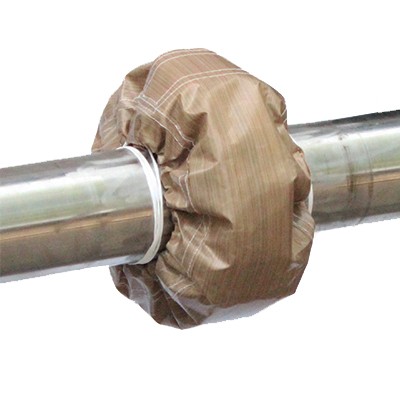

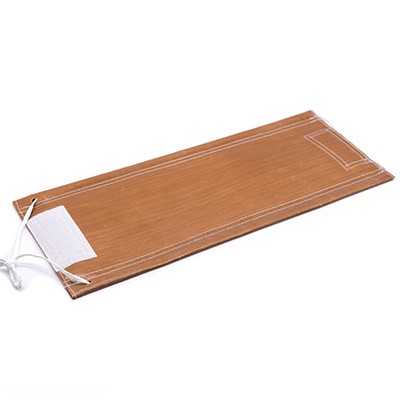

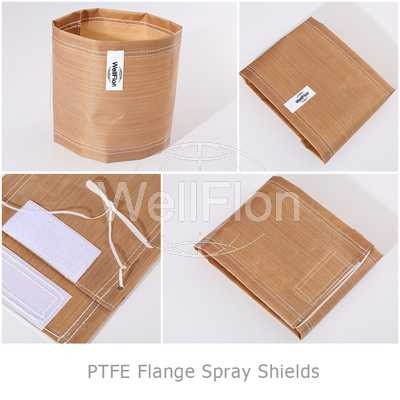

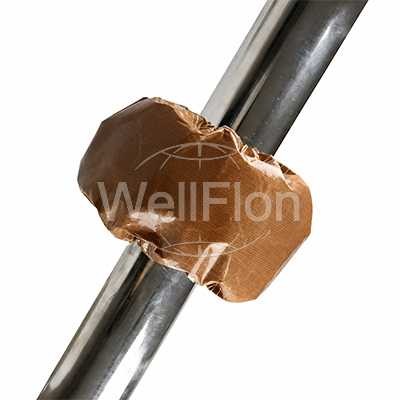

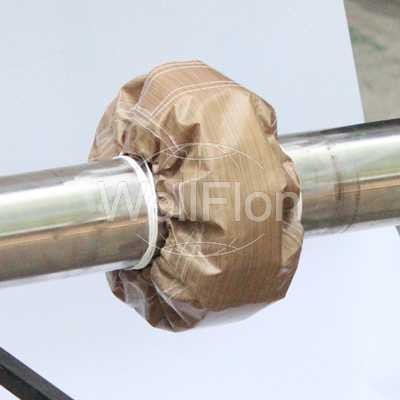

WellFlon® PTFE Flange Spray Shields are manufactured from three layers of woven PTFE (Teflon®) coated fibreglass fabric, with a central Teflon scrim for strength. This material is inherently resistant to Ultra‐Violet radiation and includes a "litmus" leak indicator patch contained within a clear Teflon window. The easy to fit lock tight fastening system comprises a Velcro strip, coupled with a braided 100% Teflon‐coated draw string. When tightened the fabric is drawn over the flange bolts to the pipe wall thus eliminating a lateral spray out.

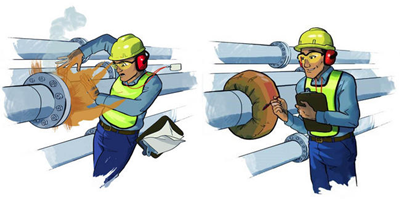

The design enables leaks to be released without danger, avoiding pressure‐build up within the shield. The PTFE shield design allows easy installation and removal with no special tools. It can be re-used, even in the event of a leak, thus providing a long term solution.

Main Characteristics and Application of PTFE Flange Spray Shields:

Materials : PTFE (Teflon) coated fibre glass
Max. Temperature : 232 Deg C
Max. Pressure : 1650 PSI
Flange Ratings : ANSI 150 – 600lb / DIN PN6 – PN40 / BS Table A – T
Dimension : ¼” – 24” +
Joint/Connection Type : Flanges, couplings, Elbows, tees and more
Leak Detection : Included
Typical Applications : Oil (fuel,lube,seal), Acids, Caustics, Corrosives, Flanges, Elbows, Tees, Valves
