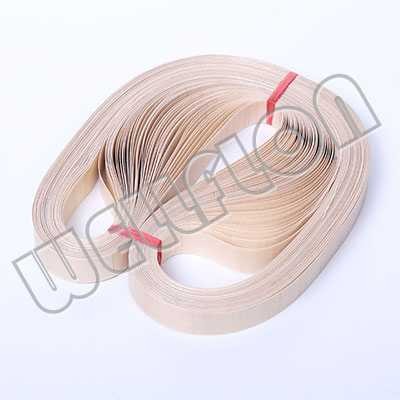

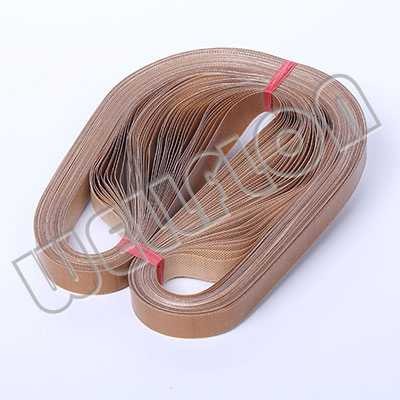

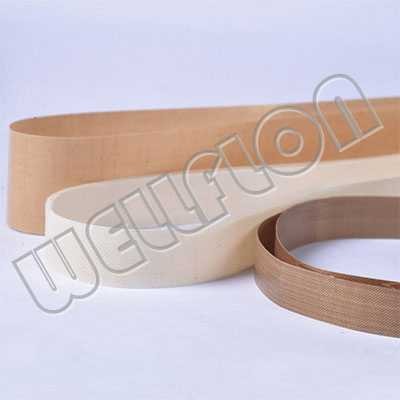

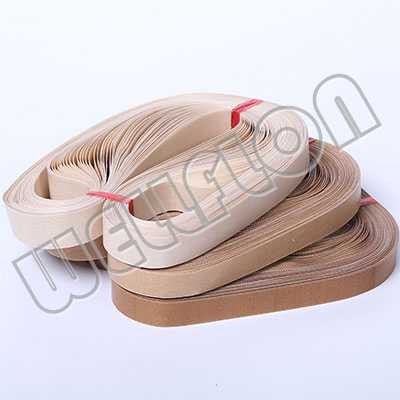

PTFE Coated Heat Seal Endless Belts

Brand: WellFlon
Materials: PTFE (Teflon), Fiberglass Fabric
Yarn Type: Filament Yarn/Texturized Yarn
Width Range: 10~100mm
Thickness: Custom Thickness
Features: Non-stick, High-Temp Resistant
Temp. Resistance: -70°C to +280°C
Color: Brow/Black/White /Custom Color
Certification: FDA/LFGB/SGS/RoHS/UL

WellFlon® PTFE Coated Heat Seal Endless Belts are used high-quality glass fiber yarn to weave seamless base belts, and impregnates PTFE fluororesin for repeated coating and firing, precision cutting, careful inspection, and reasonable packaging. The seamless sealing machine sealing belt eliminates the joint breakage, joint jumping, and joint circumference unequal caused by other sealing belts with seamed interface connection, laminated connection, hot-pressed connection and other connection methods, resulting in deviation and poor walking stability. And other problems, the operating life is several times longer than that of the Teflon sealing machine belt with seams.

Main Characteristics of PTFE Coated Heat Seal Endless Belts:
High temperature resistance up to 300°C, low temperature resistance down to -70°C, low friction coefficient, strong tensile strength, fatigue resistance, durability and excellent mechanical matching, using food-grade environmentally friendly material polytetrafluoroethylene PTFE (Teflon) impregnated, is an irreplaceable unique sealing tape on various sealing machines.

Main Application of PTFE Coated Heat Seal Endless Belts:
1.Heat sealing tape widely used in plastic film sealing machinery for belt sealing.
2.Various electronic components welding, antistatic, transmission machinery.
3.Industrial pharmaceuticals, rubber plastic sheets, electrical parts, heat treatment, heat resistance and non-stick special conditions.
4.Widely used in the mechanical matching of belt pressing and bonding interlining.
5.Various food baking, frozen food thawing.(rice, rice cake, candy, etc.)
6.Various electronic components welding and conveying machinery.
7.Industrial chemicals, rubber and plastic sheets, electrical parts, heat treatment, heat-resistant and non-adhesive special conditions conveyor belt.
8.Anti-rust adhesive coating for automobile parts, transport belt with acid, alkali and corrosive materials.
9.Widely used in mechanical matching of belt pressing and bonding interlining.
10.Various food baking, frozen food thawing. (rice, rice cake, candy, etc.)
11.Various electronic components welding and conveying machinery.
12.Industrial chemicals, rubber and plastic sheets, heat treatment of electrical parts, heat-resistant and non-stick special transport belts.
13.Anti-rust adhesive coating for automobile parts, transport belt with acid, alkali and corrosive materials.

Main Specifications of PTFE Coated Heat Seal Endless Belts:

Item	Unit	Specification
Thickness	mm	0.20
Width	mm	12，15，18，20，25，50，100
Perimeter	mm	400，560，750，770，810，910，1010，1020，1270，1360，1370，1500，1600
Weight	g/m2	400±5
Tensile Strength	N/cm	2000
Color	--	Brown/Black/White
Non-sticky	--	Good
Range of Temperature Resistance	--	-60℃~+280℃
