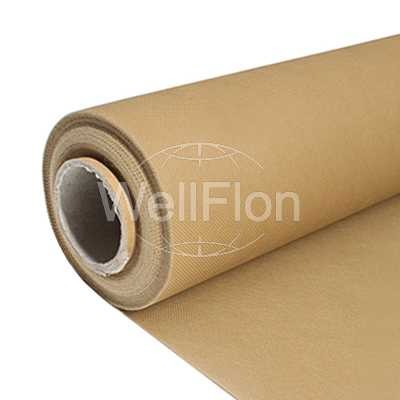

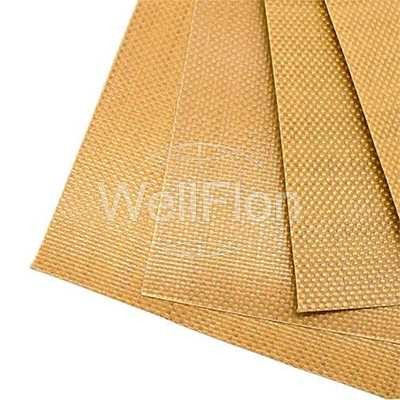

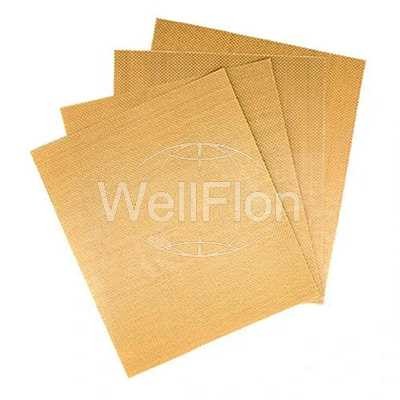

PTFE Coated Kevlar Fabric

Brand: WELLFLON
Materials: PTFE (Teflon), Kevlar Fabric
Width Range: 1000~5000mm
Thickness: Custom Thickness
Features: Non-stick, High-Temp Resistant
Temp. Resistance: -70°C to +280°C
Color: Brow/Black/White /Custom Color
Certification: FDA/LFGB/SGS/RoHS/UL

WellFlon® PTFE Coated Kevlar Fabric is made with Aramid fiber weaved fabric and coated with high quality PTFE, which is designed for tough environment like heavy conveyor belting, drying belts, wood pressing and laminating, release sheet in carbon fiber gasket and so on.These applications has high request of the life time and tensile strength, and PTFE Coated Kevlar Fabric will be the reliable material, reducing the off line time for the production lines and ensuring the quality of final product.

Main Characteristics of PTFE Coated Kevlar Fabric:

1.Superior non-stick surface, easy to release and clean.
2. Perfect solution for tough environment transportation and fireproof.
3. Outstanding temperature resistance (continuous working from -70°C to +220°C).
4.Non-toxic and compliant for food applications, FDA & LFGB certificated.
5.Strong resistance to almost all chemicals.
6. Excellent dimensional stability and super strong tensile strength.
7.Resistance to microwaves, UVs and IRs and HF.
8.Can be made into Anti static (conductive).

Main Specifications of PTFE Coated Kevlar Fabric:

Item	Color	Thickness	Max Width	Weight	Tensile Strength	Temperature
CWF-T0158	Brown/Black/White	0.08mm	1250mm	158±5g/m2	500/480N/50mm	-70~280 ℃
CWF-T0160	Brown/Black/White	0.08mm	1250mm	160±5 g/m 2	620/460N/50mm	-70~280 ℃
CWF-T0180	Brown/Black/White	0.08mm	1250mm	180±5 g/m 2	930/720N/50mm	-70~280 ℃
CWF-T0260	Brown/Black/White	0.13mm	1250mm	260±5 g/m 2	100/1000N/50mm	-70~280 ℃
CWF-T0275	Brown/Black/White	0.13mm	1250mm	275±5 g/m 2	1000/960N/50mm	-70~280 ℃
CWF-T0290	Brown/Black/White	0.13mm	1250mm	290±5 g/m 2	910/880N/50mm	-70~280 ℃
CWF-T0395	Brown/Black/White	0.18mm	1250mm	395±5g/m 2	1600/1600N/50mm	-70~280 ℃
CWF-T0415	Brown/Black/White	0.18mm	1250mm	415±5 g/m 2	1500/1500N/50mm	-70~280 ℃
CWF-T0490	Brown/Black/White	0.25mm	2800mm	490±5 g/m 2	2100/1800N/50mm	-70~280 ℃
CWF-T0510	Brown/Black/White	0.25mm	2800mm	510±5 g/m 2	2800/2700N/50mm	-70~280 ℃
CWF-T0660	Brown/Black/White	0.35mm	3200mm	660±5 g/m 2	2700/2600N/50mm	-70~280 ℃
CWF-T0680	Brown/Black/White	0.35mm	3200mm	680±5 g/m 2	2100/2200N/50mm	-70~280 ℃
CWF-T0780	Brown/Black/White	0.40mm	3500mm	780±5 g/m 2	2900/3100N/50mm	-70~280 ℃
CWF-T0820	Brown/Black/White	0.40mm	3500mm	820±5 g/m 2	3000/2900N/50mm	-70~280 ℃
CWF-T1150	Brown/Black/White	0.65mm	4000mm	1150±5 g/m 2	4200/4000N/50mm	-70~280 ℃
CWF-T1550	Brown/Black/White	0.90mm	4000mm	1550±5 g/m 2	6300/5800N/50mm	-70~280 ℃
CWF-T1650	Brown/Black/White	0.90mm	4000mm	1650±5 g/m 2	6150/5300N/50mm	-70~280 ℃
