PTFE Fiberglass Self Adhesive Tapes

Brand: WellFlon
Materials: PTFE (Teflon), Fiberglass, Silicone
Adhesive Type: Organic Silicone Adhesive
Width Range: 1250mm
Thickness: Custom Thickness
Features: Non-stick, High-Temp Resistant
Temp. Resistance: -70°C to +260°C
Color: Brow/Black/White /Custom Color

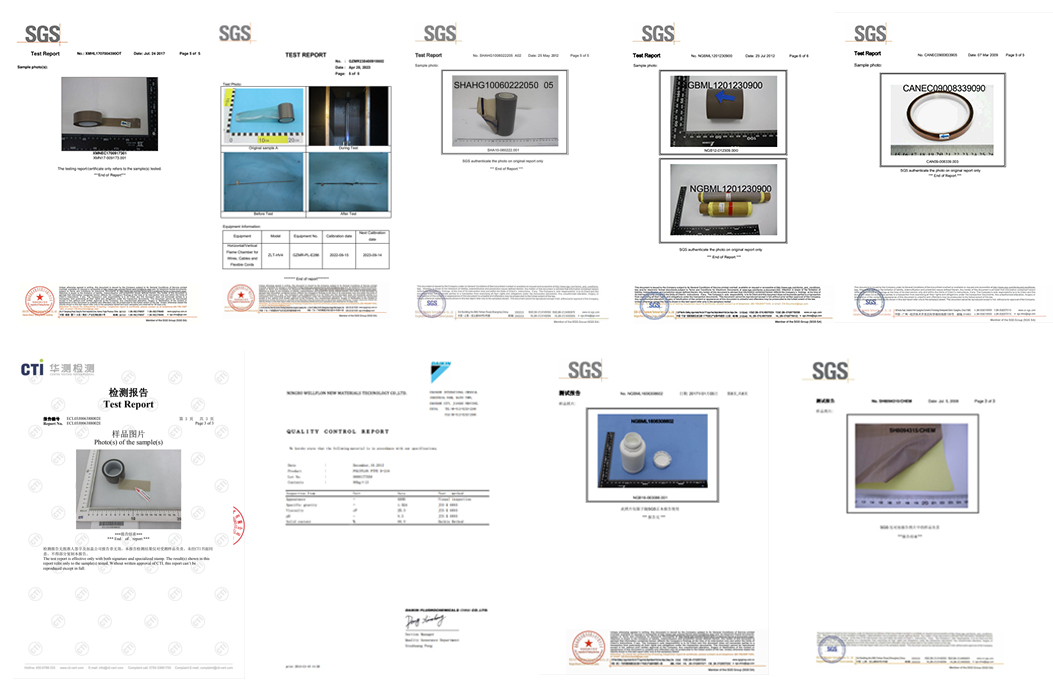

Certification: FDA/LFGB/SGS/RoHS/UL

WellFlon® PTFE Fiberglass Self Adhesive Tapes are made up of fiberglass material covered with PTFE (Teflon®) material as well as makes use of heat-resistant silicone adhesive, so it has the stamina of fiberglass and also the warmth resistance, non-sticking, gliding residential or commercial properties of PTFE material sensible residential or commercial properties such as chemical resistance as well as chemical resistance, as well as has excellent abrasion resistance. Self-adhesive PTFE tape is frequently utilized to fix ripped or used PTFE conveyor belts.

WellFlon Offers Two Types of PTFE Fiberglass Self Adhesive Tapes:

PTFE tape with release paper
The tape with release paper has adhesive backing, which can be easily attached to any surface after tearing it off.
PTFE tape without release paper
The tape without release paper is more suitable for use as spacers and conveyor belts.

Main Characteristics of PTFE Fiberglass Self Adhesive Tapes:

1. High-Temperature Heat Insulation: Good heat resistance, continuous use temperature of 300 ℃, and sticking on the heating wire can play the role of heat insulation and reduce temperature.Viscous Stable The upgraded glue formula has muscular bonding strength, and it still has good adherence even on high-temperature surfaces, and it is not easy to tear off the glue residue.

2. Smooth and Non-stick: The smooth surface has anti-stick properties, it is not easy to adhere to other substances, and it is convenient to attach to various oil stains or attachments on its surface.

3. Chemical Resistance: Chemical-resistant, Oil and water-resistant PTFE -coated fabrics do not react with strong or weak acids, so they can be applied to almost all chemical production links.Excellent chemically inert can make it widely used in medicine, new energy, photovoltaic, military industry, communication and other industries.

4. Low Coefficient of Friction: Non-stick surface, Easy to clean and maintain, PTFE fiberglass fabric is not easy to adhere to any substance; at the same time, it also has the excellent anti-static ability.It does not adhere to various substances such as oil, salt, flour, etc., in the industrial field, pastes, resins, coatings, etc., in the food industry. Therefore, in addition to being a conveyor belt, it can also be used as an industrial self-lubricating belt.

Main Specifications of PTFE Fiberglass Self Adhesive Tapes:

Item	Color	Thickness	Peel Test 260℃(mints)	Adhesive Strength To Steel (N/4cm)	Tensile Strength (N/100mm)	Temperature
CWF-FA013	Brown/Black/White	0.13mm	≥30	≥ 15	1800	-70~260 ℃
CWF-FA018	Brown/Black/White	0.18mm	≥30	≥ 20	2850	-70~260 ℃
CWF-FA020	Brown/Black/White	0.20mm	≥30	≥ 22	3100	-70~260 ℃
CWF-FA023	Brown/Black/White	0.23mm	≥30	≥ 26	3400	-70~260 ℃
CWT-FA025	Brown/Black/White	0.25mm	≥30	≥ 30	3750	-70~260 ℃
CWT-FA030	Brown/Black/White	0.30mm	≥30	≥ 35	3950	-70~260 ℃
CWT-FA040	Brown/Black/White	0.40mm	≥30	≥ 39	4500	-70~260 ℃
