PTFE Coated Seamless Belts

Brand: WellFlon
Materials: PTFE (Teflon), Fiberglass Fabric, Kevlar
Yarn Type: Filament Yarn/Texturized Yarn
Width Range: 1000~4000mm
Thickness: Custom Thickness
Features: Non-stick, High-Temp Resistant
Temp. Resistance: -70°C to +280°C
Color: Brow/Black/White /Custom Color

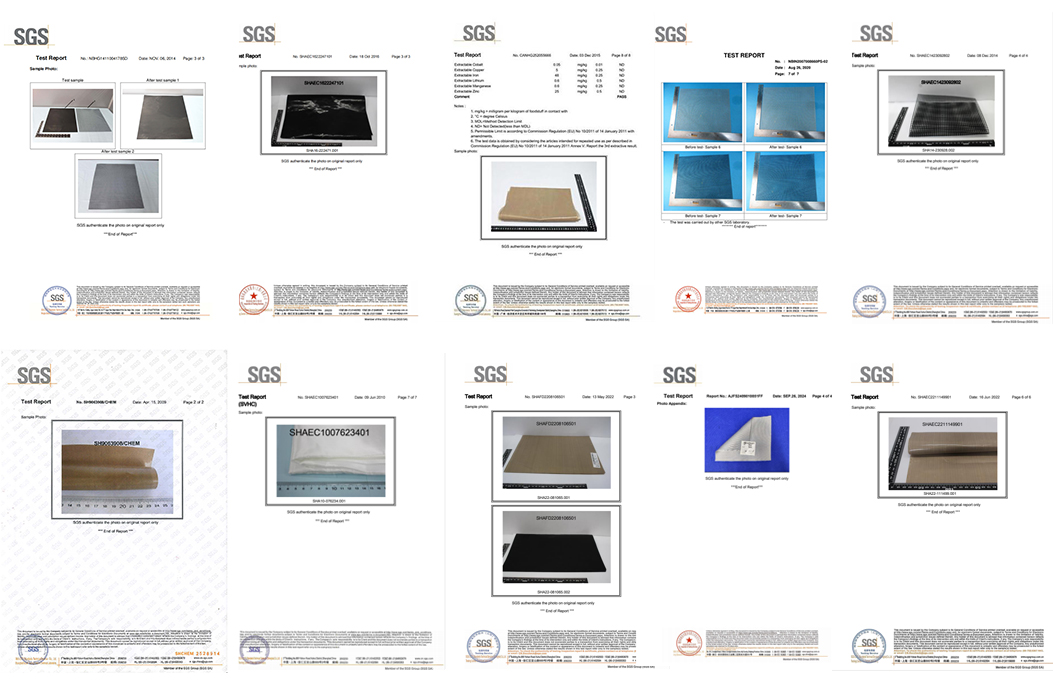

Certification: FDA/LFGB/SGS/RoHS/UL

WellFlon® PTFE Coated Seamless Belts are known as PTFE Seamless Heat Sealer Belt, PTFE seamless fusing machine belt and PTFE Seamless Laminating Machine Belt, using high-strength glass fiber yarn and Kevlar (Aramid) circular weaving equipment weaving cylindrical weaving, using unique technology Made of PTFE resin.

Main Characteristics of PTFE Coated Seamless Belts:
1.Because the seamless belt is also coated with PTFE, it continues the characteristics of PTFE, with high temperature resistance and anti-adhesive.
2.Compared with the seamed bonding machine belt, it overcomes the phenomenon that the connection of the conveyor belt interface is easy to break.
3.The seamless belt overcomes the phenomenon of poor stability and deviation due to the unequal circumference of the joint.
4.The surface is smooth and fine, and the ultra-thin adhesive lining is better processed; the bending fatigue resistance is better, and the durability is durable.
5.The seamless bonding machine with a running life is more than three times longer than any PTFE conveyor belt.

Main Application of PTFE Coated Seamless Belts:
Seamless belt is widely used in the matching machinery of belt pressing and bonding interlining, commonly known as bonding machine.

Main Use Range of PTFE Coated Seamless Belts:
1.Widely used in the mechanical matching of belt pressing and bonding interlining.
2.Various food baking, frozen food thawing.(rice, rice cake, candy, etc.)
3.Various electronic components welding and conveying machinery.
4.Industrial chemicals, rubber and plastic sheets, electrical parts, heat treatment, heat-resistant and non-stick special conditions conveyor belt.
5.Car rust-proof adhesive coating transport, belt with acid, alkali, and corrosive materials.

Main Specifications of PTFE Teflon Coated Seamless Belt:

1.Seamless belt is divided into 200, 300, 400, 500, 600, 900, 1200 and other models according to the different types of adhesive tape.
2.The matching bonding machine brands are mainly peak, heavy machine, Jiayou, Jiatian, Visa, Hashima, Prince, Hongguang, abalone, etc., the specifications of the bonding machine belt used by different models are not do the same.

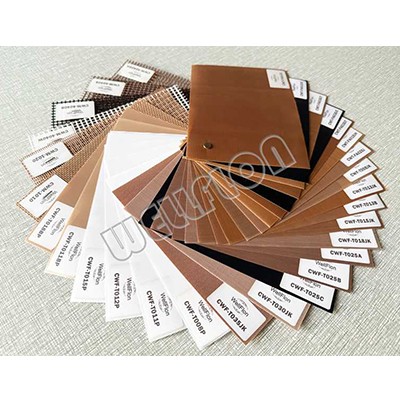

-PTFE Teflon Coated Seamless Belt color Option
The regular colors are black, white and brown.
-PTFE Teflon Coated Seamless Belt thickness
The general thickness of the seamless belt is 0.35~0.50MM. It can also be customized according to customer needs.
-PTFE Teflon Coated Seamless Belt anti-running deviation
In order to prevent deviation, the seamless belt can be used as a guide bar to prevent deviation.

Differences Between Spliced PTFE Teflon Coated Belt Belts and PTFE Coated Seamless Belts:
1.The spliced belts have thicker and easy-broken joint, short working life, are not suitable for the garment equipments with high demanding.
2.The seamless belts overcome the problems of easy-broken joint.
3.The seamless belts have even perimeters, no drifting during work.
4.The seamless belts have 3 times the working life of any types of spliced belts.

Main specifications of PTFE Coated Seamless Belts:

Standard thickness fabric 13.0~20.0 /mil 0.35~0.50(mm)
Max Width 82/ in 2100 (mm)
Seamlessor Jointless Girth Belt (mm)
1360	1380	1440	1470	1510	1520	1530	1540	1550	1560
1580	1600	1640	1660	1680	1730	1740	1780	1820	1830
1840	1850	1870	1880	1950	2000	2040	2100	2230	2240
2250	2310	2320	2420	2440	2450	2500	2600	2630	2750
2800	2820	2850	2880	2900	3050	3080	3090	3200	3450
3540	3590	3820	3850	3890	3900	3920	3930	4200	4270
5100	5270	5400	5640	5800	6000	6440	6700	6900	7300
8000	8500	8700	9000	9600	10000	11000	18000	12000	12700
