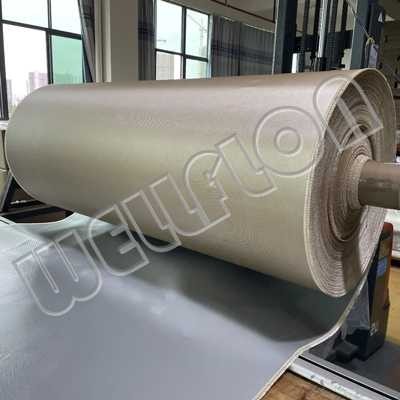

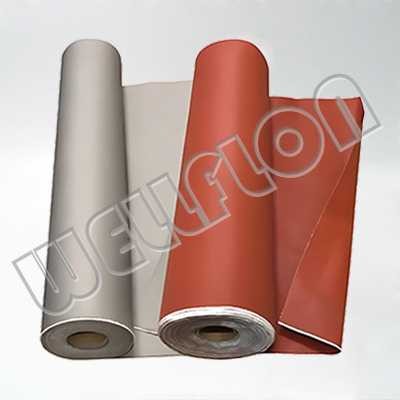

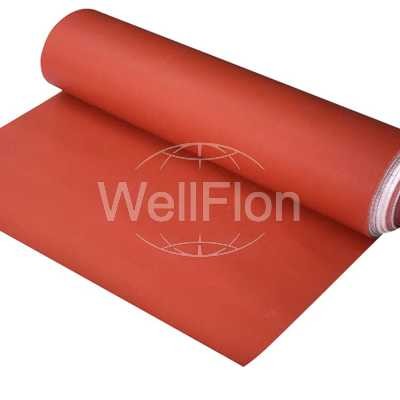

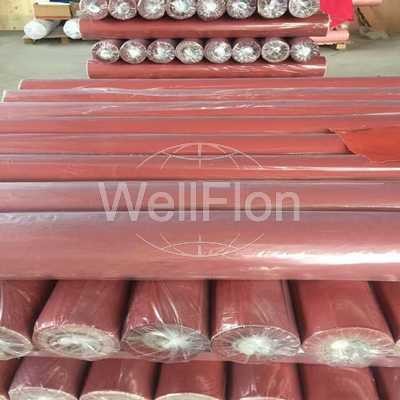

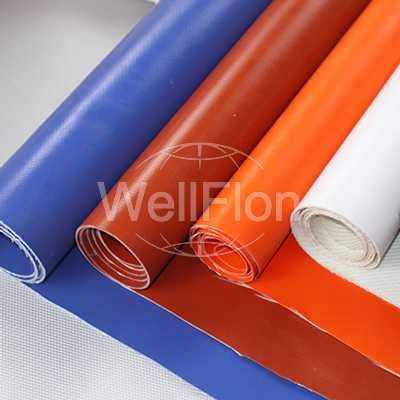

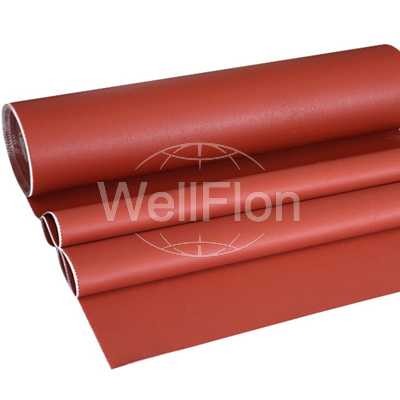

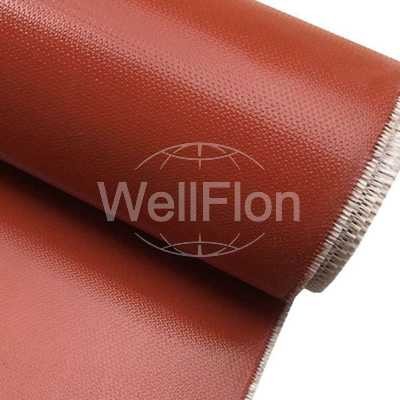

Silicone Coated Fiberglass Fabrics

Brand: WELLFLON
Materials: Silicone, Fiberglass Fabric
Yarn Type: Filament Yarn/Texturized Yarn
Width Range: 1000~4000mm
Thickness: Custom Thickness
Features: Non-stick, High-Temp Resistant
Temp. Resistance: -70°C to +280°C

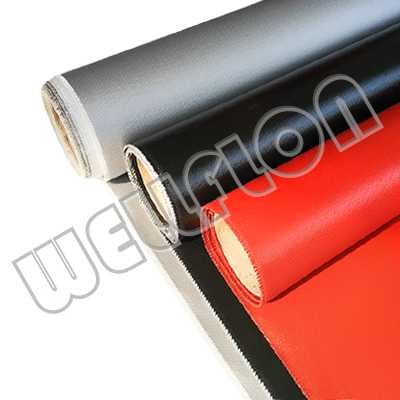

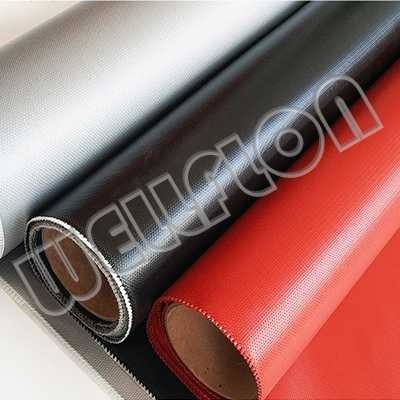

Color: Brow/Black/White /Custom Color

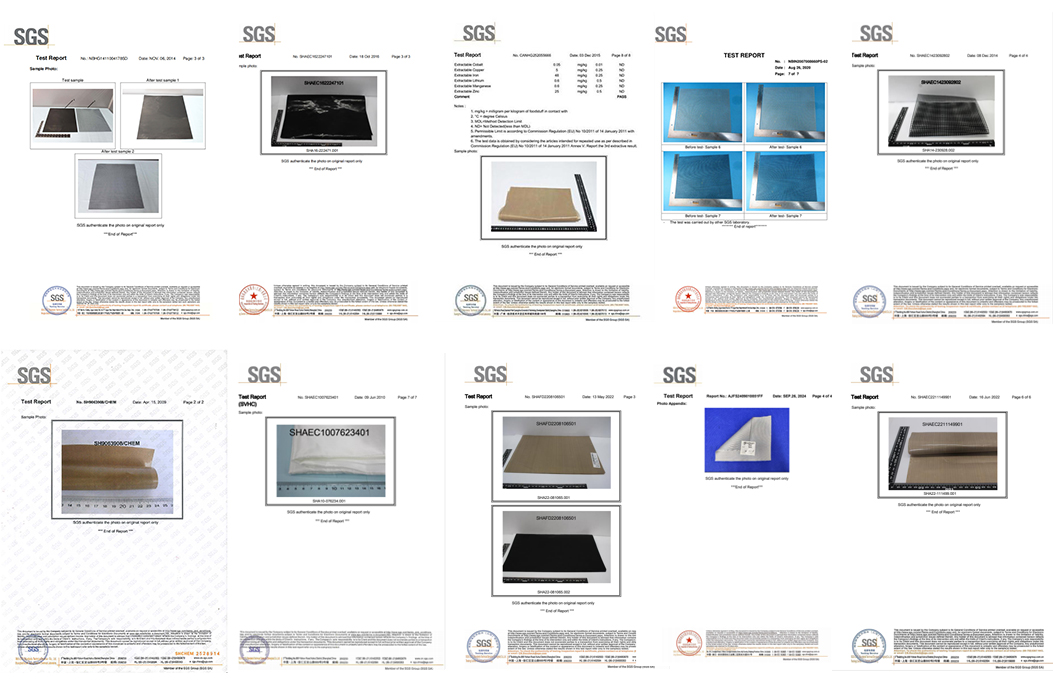

Certification: FDA/LFGB/SGS/RoHS/UL

WellFlon® Silicone Coated Fiberglass Fabrics are made of silicone emulsion coated fiberglass with unique technology. our silicone coated glass fabrics use the superior strength and dimensional stability of woven fiberglass with a high temperature silicone coating,results in such a conformable, flexible, trackable, and wear resistant fabric, whichi is appropriate for use in a variety of demanding applications. Our silcone coated fiberglass fabrics have excellent thermal and mechanical properties. Also, the silicone coating supply better friction than PTFE coated fiberglass fabrics with very good release properties, especially when in contact with adhesives and other tacky substances.

Main Characteristics of Silicone Coated Fiberglass Fabrics:
1.Heat and cold resistance, good performance in heat preservation.
2.High strength, soft and flexible.
3.Chemical resistance, oil and water proof.
4.Heat resistance, weather resistance, resistant to ozone, oxygen, light and so on.
5.High insulation performance, dielectric constant 3-3.2, breakdown voltage 20～50KV/MM.

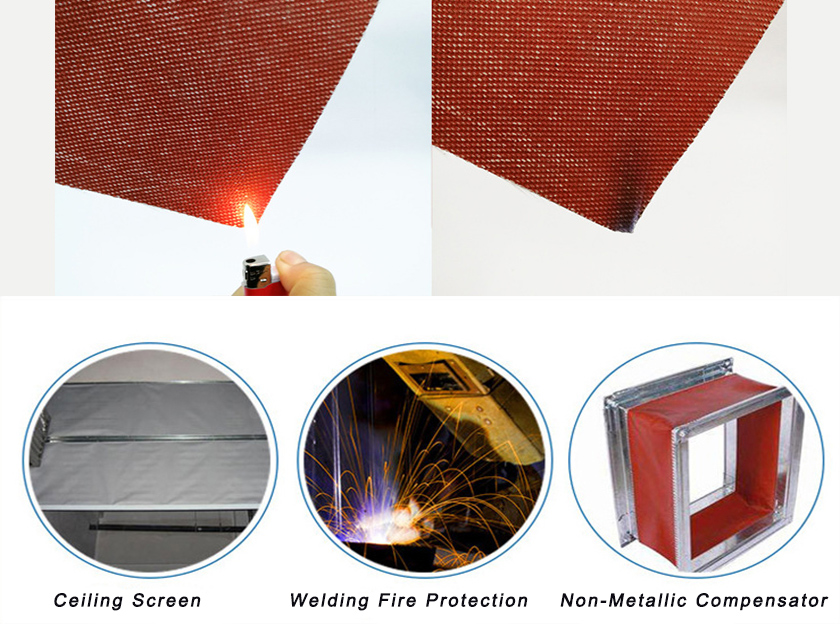

Main Application of Silicone Coated Fiberglass Fabrics:
1.Electric Insulation: Silicone rubber coated fiberglass cloth features high grade of electric insulation and bear a load of high voltage. It fits for making products like insulation cloth and sleeves etc.
2.Non-metallic compensator: used as pipeline flexible coupling, non-metallic compensator helps to avoid damage caused by heat expansion and cold contraction. This material specially fit for use in industries of petroleum, chemical engineering, cement, iron and steel and energy sources due to its special features of temperature resistance, anti-corrosion, anti-aging, and good elasticity and toughness.
3. Anti-Corrosion function: It is good to be used as inner and outer anti-corrosion layer featuring excellent corrosion, resistance, temperature resistance and high strength. It proves to be an ideal anti-corrosion material.
4.Others: Apart from above application, it can also be used as sealing material, temperature resistance and anti-corrosion conveyor belt and packaging material.

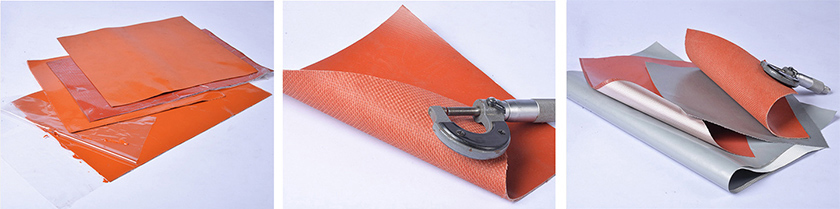

Main Specifications of Silicone Coated Fiberglass Fabrics:

Item	Color	Thickness	Max Width	Weight	Breakdown Voltage	Temperature
CWF-S0280	Gray/Black/Red	0.23mm	1800mm	280±5g/m2	20~50 KV/mm	-70~260 ℃
CWF-S0510	Gray/Black/Red	0.43mm	1800mm	510±5 g/m 2	20~50 KV/mm	-70~260 ℃
CWF-S0570	Gray/Black/Red	0.45mm	1800mm	570±5 g/m 2	20~50 KV/mm	-70~260 ℃
CWF-S0760	Gray/Black/Red	0.60mm	1800mm	760±5 g/m 2	20~50 KV/mm	-70~260 ℃
CWF-S0800	Gray/Black/Red	0.62mm	1800mm	800±5 g/m 2	20~50 KV/mm	-70~260 ℃
CWF-S0860	Gray/Black/Red	0.65mm	1800mm	860±5 g/m 2	20~50 KV/mm	-70~260 ℃
CWF-S1080	Gray/Black/Red	0.85mm	1800mm	1080±5g/m 2	20~50 KV/mm	-70~260 ℃
CWF-S1400	Gray/Black/Red	1.00mm	1800mm	1400±5 g/m 2	20~50 KV/mm	-70~260 ℃
CWF-S1800	Gray/Black/Red	1.00mm	1800mm	1800±5 g/m 2	20~50 KV/mm	-70~260 ℃
CWF-S2450	Gray/Black/Red	1.50mm	1800mm	2450±5 g/m 2	20~50 KV/mm	-70~260 ℃
